Convoluted PTFE Tubing With Cuffs
Cuffs on Convoluted Tubing are designed to have standard fractional ID’s such as 1/4″ , 1/2″ and 3/4″ all the way up to a 4” diameter. Customers can order specific custom made cuffed ID’s or even cuffed OD’s for applications and processes that are using compression fittings.
PTFE has the best flex-life and can be post formed with cuffs easier than FEP or PFA.- Convoluted PTFE can handle static dissipative & vacuum service applications
- Cuffed PTFE Tubing can be made with a Conductive ID.
Cuffed Convoluted PTFE
| Size | Call Out | Cuff ID | Cuff Length | Wall | Min. ID | Max. ID | Max. OD | Burst | Bend Rad. |
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | Convo-4 | .250 | .750 | .015 | .181 | .188 | .320 | 180 psi | .375 |
| 5/16 | Convo-5 | .312 | 1.00 | .020 | .273 | .281 | .414 | 192 psi | .500 |
| 3/8 | Convo-6 | .375 | 1.00 | .020 | .303 | .312 | .450 | 160 psi | .750 |
| 1/2 | Convo-8 | .500 | 1.00 | .020 | .425 | .437 | .590 | 120 psi | 1.25 |
| 5/8 | Convo-10 | .625 | 1.50 | .025 | .485 | .500 | .660 | 120 psi | 1.50 |
| 3/4 | Convo-12 | .750 | 1.50 | .025 | .608 | .625 | .780 | 100 psi | 1.75 |
| 1 | Convo-16 | 1.00 | 2.00 | .030 | .849 | .875 | 1.100 | 90 psi | 2.25 |
| 1 1/4 | Convo-20 | 1.25 | 2.50 | .035 | 1.150 | 1.190 | 1.600 | 85 psi | 2.75 |
| 1 1/2 | Convo-24 | 1.50 | 2.50 | .040 | 1.410 | 1.490 | 1.910 | 80 psi | 3.00 |
| 2 | Convo-32 | 2.00 | 2.50 | .043 | 1.955 | 1.985 | 2.450 | 65 psi | 4.25 |
| 2 1/2 | Convo-40 | 2.50 | 2.50 | .062 | 2.470 | 2.530 | 3.185 | 75 psi | 6.00 |
| 3 | Convo-48 | 3.00 | 2.50 | .070 | 2.940 | 3.060 | 3.750 | 62 psi | 7.00 |
| 4 | Convo-64 | 4.00 | 2.50 | .070 | 3.940 | 4.060 | 4.750 | 47 psi | 9.00 |
Convo PTFE has a non-stick surface, allowing easy cleaning and is self draining because of it spherical design which makes it an ideal hose for caustic fluid transfer applications. Convoluted PTFE Tubing with cuffs is generally supplied in natural PTFE, but can be manufactured in black or other custom colors.
When over braided Convoluted PTFE Tubing will work well in applications that require higher then normal pressures or where crush protection is needed.

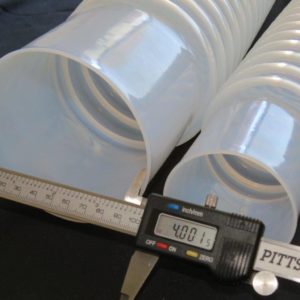

Large Diameter Convoluted PTFE Tubing With Cuffed Ends
Convoluted PTFE Tubing with Cuffed Ends
Here at Tef-Cap Industries, we specialize in providing clients a range of high quality convoluted tubing products for use in aerospace, automotive, medical, military and other industries. These flexible and multi-purpose products can be used to provide insulation or harness cables, wires, fiber optics and more. For more information on applicability, customization and price, contact us.
Convoluted PTFE Tubing Part Numbers
Convo-4 (Conv-4) / Convo-5 (Conv-5) / Convo-6 (Conv-6) / Convo-8 (Conv-8) / Convo-10 (Conv-10) / Convo-12 (Conv-12) / Convo-16 (Conv-16) / Convo-20 (Conv-20) / Convo-24 (Conv-24) / Convo-32 (Conv-32) / Convo-40 (Conv-40) / Convo-48 (Conv-48) / Convo-64 (Conv-64)
We Produce Cuffed and Convoluted PTFE Tubing in Various Sizes for any Application
As a critical designer, innovator, and manufacturer of extruded PTFE tubing, Tef Cap Industries ensures companies in the construction, agricultural, automotive, aerospace, medical device, healthcare, chemical processing, and food processing industries have a steady and reliable supply of flexible PTFE tubing with superior weather-resistant, chemical-resistant, and temperature-resistant properties.
Our convoluted PTFE tubing with cuffs is an exceptionally flexible, multi-purpose tubing that is relied upon for high liquid flow rates with minimal flow resistance. Our convoluted PTFE tubing with cuffs is used in any application where companies require a flexible, easily bent and adjusted, tight-fitting, non-stick tubing solution that ensures uninterrupted liquid flow.
You’ll find our convoluted PTFE tubing in chemical processing, where high transfer volumes of liquids are critical without the tubing degrading when exposed to acids, solvents, high temperatures, and corrosive environments. Our PTFE tubing is used in coolant lines for numerous machines and equipment.
What is Convoluted PTFE Tubing Used for?
From being used throughout numerous different industrial and commercial equipment and machinery to being relied on in pharmaceutical production, medical device manufacturing – and any application where ensuring high flow rates of liquid is critical for operation – our custom fluoropolymer extrusions with cuffs have weather-resistant, temperature-resistant, chemical resistant and electrical insulation properties your systems need.
- Protecting wires and cables: Whether it’s protecting wires, cabling, and electronics in industrial and commercial equipment and machinery or providing electrical insulation and a protective barrier for wiring and cabling within automotive and aerospace engines, our flexible convoluted PTFE tubing with cuffs will protect your electronic and integrated assemblies from the harshest of operating environments.
- Fluid transfer: Our convoluted PTFE tubing with cuffs ensures a high fluid transfer rate with minimal resistance and is self-draining.
- Medical applications: From catheters and blood transfusions to ensuring proper and sufficient oxygen for medical patients, our convoluted PTFE tubing has numerous medical applications.
- Automotive and aerospace: our convoluted PTFE tubing with cuffs promotes proper oil and liquid flow within automotive engine transfer hoses and fuel lines. It’s used extensively within airplane fuel systems and as a tubing solution that provides critical electrical insulation for cabling, wiring, avionics, and electronics.
- Industrial applications: From hydraulic equipment needing a steady, uninterrupted flow of lubricating oils to hydraulic pumps to numerous other types of industrial and commercial equipment and machinery, our PTFE tubing is a must-have solution.
- Electrical insulation: Our PTFE tubing provides essential electrical insulation for numerous integrated electrical assemblies, cabling systems, and wires.
- HVAC systems: PTFE tubing is heavily relied upon as a means of ensuring proper supply of coolant to HVAC systems.
- 3D printing: Our corrugated PTFE tubing with cuffs is critical to ensuring a proper supply of filament and powdered metals for additive / 3D printing machines. With its high-temperature-resistant properties, our PTFE tubing can withstand the operating temperatures of 3D printing nozzles and machines.
- Robotics: Whether protecting electronics, wiring, and cabling within robot arm systems or ensuring proper lubrication to the joints and connections within robot arms, our flexible corrugated PTFE tubing with cuffs is heavily relied upon within the automated and robotics industry.
If you are interested in our flexible convoluted PTFE tubing with cuffs and have questions about your specific application, contact us now.
To learn more about our existing product line or to compare extruded PTFE tubing options for your project, contact us directly online or by calling us at 610-692-2576 today.
