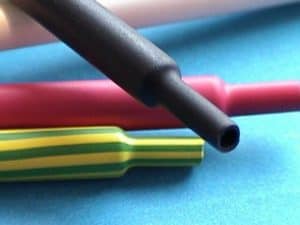

Heat Shrinkable Polyolefin Tubing
Polyolefin Heat Shrink
Designed for a wide range of applications ranging from chemical to heat resistance. Polyolefin Tubing is an inexpensive solution to many problems such as electrical insulation, wire strain relief, cable marking and a protective cover for critical components. Heat Shrinkable Polyolefin is also manufactured to be a Flexible and Flame Retardant Tube. Polyolefin can also be made with a meltable adhesive liner.
Features
- Shrink Ratio 2:1
- Operating Temperature : -67 to 275 F
- Flammability : UL VW-1
- UL 224
Polyolefin Specifications
- Mil 23053/5 Class 1 & 3 (Clear is Class 2)
- QPL Listed
- Reach & RoHS Compliant
- Cross Ref : Raychem (RNF100) 3M (FP301) Alpha (FIT221)
2:1 Heat Shrink Polyolefin • 23053/5
| Size | Expanded ID | Recovered ID | Total Wall | Spool | Mil-Spec 23053/5- |
|---|---|---|---|---|---|
| 3/64 | .047 | .023 | .013 | 500 | 101 |
| 1/16 | .063 | .031 | .014 | 500 | 102 |
| 3/32 | .094 | .046 | .017 | 500 | 103 |
| 1/8 | .125 | .062 | .017 | 500 | 104 |
| 3/16 | .188 | .093 | .017 | 250 | 105 |
| 1/4 | .251 | .125 | .022 | 250 | 106 |
| 5/16 | .314 | .157 | .022 | 250 | |
| 3/8 | .377 | .187 | .022 | 200 | 107 |
| 1/2 | .503 | .250 | .022 | 200 | 108 |
| 5/8 | .657 | .314 | .027 | 200 | |
| 3/4 | .759 | .375 | .027 | 100 | 109 |
| 1 | 1.000 | .500 | .030 | 100 | 110 |
| 1 1/4 | 1.250 | .630 | .034 | 100 | |
| 1 1/2 | 1.500 | .750 | .034 | 100 | 111 |
| 2 | 2.000 | 1.000 | .038 | 100 | 112 |
| 3 | 3.000 | 1.500 | .042 | 100 | 113 |
| 4 | 4.000 | 2.000 | .046 | 100 | 114 |
| 5 | 5.000 | 2.500 | .046 | 100 | |
| 6 | 6.000 | 3.000 | .046 | 50 |

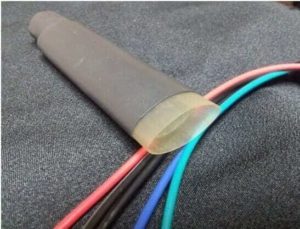

Adhesive Lined Heat Shrinkable Polyolefin
Melt liner polyolefin is a high shrink ratio material that allows for fluid containment and sealing of electrical splices and connections. Heat shrinkable polyolefin with an adhesive liner ( meltable glue ) is an easy way to seal wires, break outs, connector to cable transitions all while still being able to be used in WET applications.
Features
- Shrink Ratio’s : 2:1 , 3:1 , 4:1
- Operating Temperature : -67 to 230 F
- Flammability : UL VW-1
- UL 224
Polyolefin Specifications
- Mil Spec : 23053/4 Class 2 & 3
- RoHS Compliant
- Cross Ref : Raychem (ATUM 3:1 ATUM 4:1 DWP-125) 3M (EPS-300, EPS-400) Alpha (FIT321)
Adhesive Lined Heat Shrink Polyolefin
| Size | Expanded ID | Recovered ID | Total Wall | Spool | Mil-Spec 23053/4- |
|---|---|---|---|---|---|
| 1/8 | .126 | .062 | .025 | 500 | |
| 3/16 | .189 | .093 | .025 | 250 | |
| 1/4 | .252 | .125 | .030 | 250 | 201 |
| 3/8 | .378 | .187 | .030 | 200 | 202 |
| 1/2 | .500 | .250 | .030 | 100 | 203 |
| 3/4 | .752 | .375 | .035 | 204 | |
| 1 | 1.000 | .500 | .040 | 205 | |
| 1 1/2 | 1.500 | .750 | .043 | 206 |
| Size | Expanded ID | Recovered ID | Total Wall | Spool | Mil-Spec 23053/4- |
|---|---|---|---|---|---|
| 1/8 | .125 | .038 | .040 | 500 | 301 |
| 3/16 | .188 | .060 | .040 | 250 | |
| 1/4 | .251 | .079 | .040 | 250 | 302 |
| 3/8 | .374 | .188 | .047 | 200 | |
| 1/2 | .503 | .156 | .056 | 100 | 303 |
| 3/4 | .767 | .236 | .078 | ||
| 1 | 1.000 | .314 | .079 | 304 | |
| 1 1/2 | 1.570 | .510 | .090 | 305 |
| Size | Expanded ID | Recovered ID | Total Wall | Spool |
|---|---|---|---|---|
| 3/16 | .1575 | .039 | .0354 | 200 |
| 5/16 | .3150 | .079 | .0354 | 200 |
| 1/2 | .4724 | .118 | .0512 | 200 |
| 3/4 | .6300 | .157 | .0630 | |
| 1 | .9449 | .236 | .0827 | |
| 1 1/4 | 1.2598 | .315 | .0906 | |
| 2 | 2.0472 | .511 | .0984 |
Heat-shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical work. It can also be used to repair the insulation on wires or to bundle them together, to protect wires or small parts from minor abrasion, and to create cable entry seals, offering environmental sealing protection. Heat-shrink tubing is ordinarily made of polyolefin however for applications that require higher temperature resistance or are coming in contact with harsh chemicals Heat Shrink Teflon products are substituted.
Protecting Your Electrical Components from Shorts and Overheats
At Tef Cap Industries, we offer a range of durable, reliable products, including PTFE heat-shrinking tubing, polyolefin heat-shrink tubing, and much more. Our high-quality tubing is utilized for a wide range of useful applications and won’t warp or shrink. Our polyolefin products protect your crucial electrical components from shorts and overheating. We can also customize your tubing to fit your needs, making everything from heat-shrinking FEP tubing to probe covers, corrugating tubing, and more.
What Applications can Polyolefin Heat Shrink Tubing be Used For?
Our polyolefin heat shrink tubing is available to be used for a range of applications, including:
-
-
- Wire harnessing and cable bundling: Our polyolefin tubing can be placed over your desired bundle of wires, and heat can be applied to shrink the tubing. This product is excellent for tightening bundles of cables together and then covering them with the right tubing to create a secure hold and additional protection.
- Electrical insulation: This tubing is often used as electrical insulation thanks to its excellent electrical properties and reliable resistance to heat, chemicals, and abrasions. The tubing protects your wires and connections from environmental conditions and creates a strong barrier.
- Protection from abrasion and damage: Polyolefin heat shrink tubing is a robust material with good resistance to wear and abrasion, making it ideal for automotive, electrical, and industrial applications that could be damaged due to rubbing and other movements.
- Identification and organization: Managing wires or cabling is much easier with this heat shrink tubing because it can be color-coded, making it much easier to identify specific cables and wires during repairs or installations.
- Environmental sealing: Polyolefin is weatherproof and highly resistant to UV rays, water, and other environmental conditions, making it a great choice as a material used to seal important cables or wires outside or in harsh climates.
- Repair and splicing: This tubing is excellent for repairing and splicing wires, providing a tight seal for durable, reliable repairs.
- Cable management: Our heat shrink tubing makes it easy to manage cables or wires using labels or color coding for easy identification and location.
-
