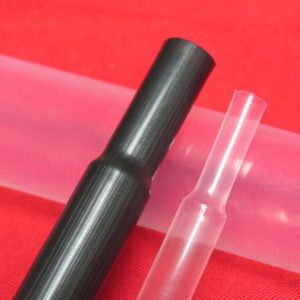

FEP Heat Shrink Tubing 1.3:1 – 23053/11



FEP 1.3:1 Heat Shrink Tubing (Fluorinated Ethylene Propylene) is a high temperature, chemical resistant Fluoropolymer tube designed to have a lower shrink temperature than PTFE, but greater flexibility, optical clarity and excellent release properties. FEP Heat Shrink FEP Tubing / Heat Shrink FEP Tube is a common alternative to the higher rated PTFE resins which require 624°F in order to start shrinking. Heat Shrink products made from FEP resins generally can handle temperatures ranging from Cryogenic up to 400°F, but can do so while still keeping an FDA rating on all food contact applications.

Tef Cap can manufacture Heat Shrink FEP Tubes for custom applications and also produces heat shrink tubing that is Biocompatible and USP Class VI compliant. FEP Heat Shrink Tubing can be produced in standard 4 ft lengths or on spools with long continuous lengths for automated cutting machines. These long spools help eliminate waste and speed up assembly.

Heat Shrink FEP Tubing / Heat Shrink FEP Tube with a 1.3:1 will cover a large range of product sizes but is limited in its shrink ratio. For odd shapes and lengths Tef Cap can also manufacture a custom FEP Heat Shrink Tube designed specifically for your needs. For a larger shrink ratio please see FEP 1.6:1 Heat Shrink Tubing.

Features of FEP Heat Shrink Tubing

  • Easier to shrink than PTFE
  • Max Temperature Range 400°F
  • Flame Rating : UL 94 VO
  • Chemically inert
  • Lower gas and vapor permeability than PTFE
  • Superior dielectric strength
  • Excellent UV transmission
  • Self extinguishing
  • Fractional & AWG Sizes
  • Dimensionally Compliant to 23053/11
FEP Heat Shrink Tubing by Tef-Cap Industries

FEP 1.3:1 Heat Shrink Tubing AWG

AWG SizeExpanded IDRecovered IDWall ThicknessAMS-DTL-23053/11
AWG 24.031.027.008 +/- .00223053/11-101
AWG 22.036.032.008 +/- .00223053/11-102
AWG 20.045.039.008 +/- .00223053/11-103
AWG 18.060.049.008 +/- .00223053/11-104
AWG 16.075.061.009 +/- .00223053/11-105
AWG 14.092.072.009 +/- .00223053/11-106
AWG 12.115.089.009 +/- .00223053/11-107
AWG 10.141.114.010 +/- .00323053/11-108
AWG 9.158.124.010 +/- .00323053/11-109
AWG 8.180.143.010 +/- .00323053/11-110
AWG 7.197.158.011 +/- .00423053/11-111
AWG 6.225.180.011 +/- .00423053/11-112
AWG 5.248.198.011 +/- .00423053/11-113
AWG 4.290.226.011 +/- .00423053/11-114
AWG 3.310.249.011 +/- .00423053/11-115
AWG 2.365.280.012 +/- .00423053/11-116
AWG 1.400.311.012 +/- .00423053/11-117
AWG 0.440.349.012 +/- .00423053/11-118

FEP 1.3:1 Heat Shrink Tubing Fractional

SizeExpanded IDRecovered IDWallAMS-DTL-23053/11
3/8.500.383.015 +/- .00423053/11-119
7/16.580.448.020 +/- .00423053/11-120
1/2.666.510.020 +/- .00423053/11-121
5/8.830.637.025 +/- .00423053/11-122
3/41.000.764.030 +/- .00423053/11-123
7/81.170.891.035 +/- .00423053/11-124
11.3301.020.035 +/- .00423053/11-126
1 1/81.5001.145.035 +/- .004
1 1/41.6661.270.035 +/- .004
1 3/81.8331.390.035 +/- .004
1 1/22.0001.570.035 +/- .00423053/11-127
FEP Heat Shrink Products by Tef-Cap Industries

FEP 1.3:1 Heat Shrink Tubing

  • AMS-DTL-23053/11 (Dimensional Reference Only)
  • Dielectric Strength: > 2,000 V/M
  • Shrink Temperature: 230°F
  • Temperature Range: -100 to 400°F
  • Standard Lengths: 4 ft and coils
  • Color : Translucent ( Colored FEP available upon request )

Reliable Sealed Protection With FEP 1.3:1 Heat Shrinkable Tubing

Tef Cap provides the finest quality 1.3:1 Heat Shrink FEP Tubes. Our products are designed to provide items utmost protection against excess amount of environmental heat. Highly flexible and expandable, these shrink tubes, when subjected to heat, can mold into irregular shapes, providing reliable sealed protection to enclosed items.

Shrinking Instructions

For long wires and tubes start at one end and evenly heat the surface making sure to rotate the part or the heat source so that recovery does not come completely off of one side. Rotating will give you a uniform shrink eliminating air bubbles and keeping the wall even throughout the part. If parts cannot be rotated most heat guns come with a shield or a deflector that can be used in place of rotating. Large metal parts would fare better if they can be pre heated to take the chill off of the part and warm the surface. Over heating the part will cause shrinking to occur prematurely throughout the tube and anywhere the tubing might have come into contact with the hot surface.

Over heating Heat Shrink FEP Tubes while shrinking will cause it to crack and become brittle. If this happens the FEP will have a cloudy appearance in spots. Please keep in mind that FEP tubing will ACTUALLY sometimes grow in length during shrinking and that material will bunch and wrinkle if it is not allowed to slide and grow over the part.

FEP 1.3:1 Heat Shrink Tubing • 23053/11

23053/11-101, 23053/11-102, 23053/11-103, 23053/11-104, 23053/11-105, 23053/11-106, 23053/11-107, 23053/11-108, 23053/11-109, 23053/11-110, 23053/11-111, 23053/11-11213, 23053/11-114, 23053/11-115, 23053/11-116, 23053/11-117, 23053/11-118, 23053/11-119, 23053/11-120, 23053/11-121, 23053/11-122, 23053/11-123, 23053/11-124, 23053/11-126, 23053/11-127

AWG Heat Shrink FEP 1.3 Sizing

AWG # 24 Heat Shrink FEP , AWG # 22 Heat Shrink FEP , AWG # 20 Heat Shrink FEP , AWG # 18 Heat Shrink FEP , AWG # 16 Heat Shrink FEP , AWG # 14 Heat Shrink FEP , AWG # 12 Heat Shrink FEP , AWG # 10 Heat Shrink FEP , AWG # 9 Heat Shrink FEP , AWG # 8 Heat Shrink FEP , AWG # 7 Heat Shrink FEP , AWG # 6 Heat Shrink FEP , AWG # 5 Heat Shrink FEP , AWG # 4 Heat Shrink FEP ,  AWG # 3 Heat Shrink FEP , AWG # 2 Heat Shrink FEP , AWG # 1 Heat Shrink FEP , AWG # 0 Heat Shrink FEP

Fractional Heat Shrink FEP 1.3 Sizing

3/8 Heat Shrink FEP 1.3 , 7/16 Heat Shrink FEP 1.3 , 1/2 Heat Shrink FEP 1.3 , 5/8 Heat Shrink FEP 1.3 , 3/4 Heat Shrink FEP 1.3 , 7/8 Heat Shrink FEP 1.3 , 1 Heat Shrink FEP 1.3 ,  1 1/8 Heat Shrink FEP 1.3 , 1 1/4 Heat Shrink FEP 1.3 , 1 3/8 Heat Shrink FEP 1.3 , 1 1/2 Heat Shrink FEP 1.3

Recovery Temperature

SpecificationFEPPTFEDual Wall PTFE/FEPPEEK
Expanded ID < 1.00"410°F +/- 10°662°F +/- 8° for 10 minutes625°F650°F
Expanded ID > 1.00"430°F +/- 10°662°F +/- 8° for 10 minutes625°F650°F
Mil Spec23053/1123053/12N/AN/A
